E7 Audience

E7-Audience

1.820,00 €*

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

WiFi 7 with 6 GHz Support

12 Spatial Streams

Real-time Spectral Analysis for Enhanced Channel Selection

High Selectivity PRISM™ RF Filtering Technology

Dedicated Spectral Analyzer Radio

Selectable Directional Beamforming Antenna (15 dBi, 50° or 11 dBi, 90°) for Cell Size Optimization

Long-range 6 GHz Performance with AFC*

465+ m² (5,000+ ft²) Open Space Coverage

1,500+ Connected Devices

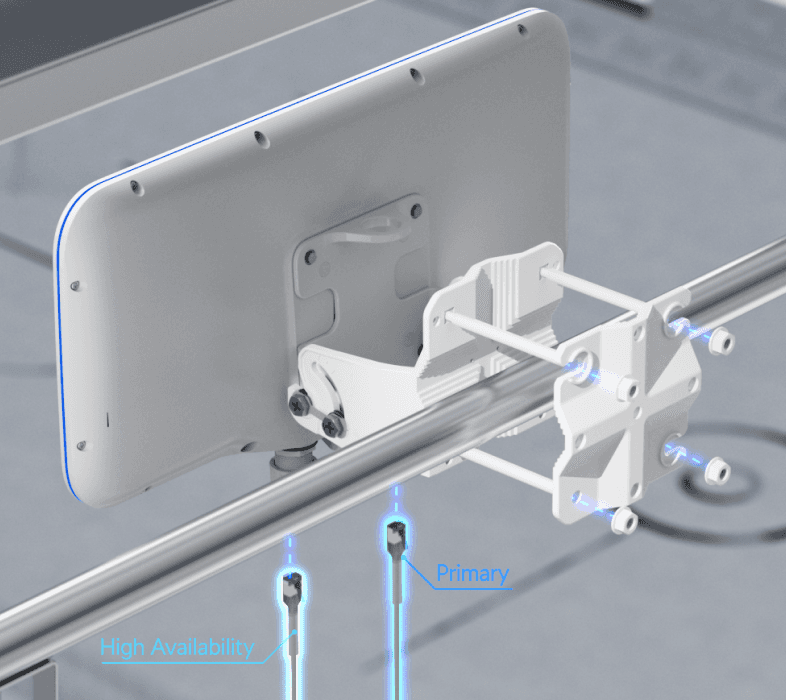

1 x 10 GbE & 1 x GbE RJ45 Port for Power & Data Redundancy

Versatile Wall and Pole Mounting

Powered using PoE++

IP68 Waterproof

_{Note. 6 GHz operation is supported in these countries.}

_{*Available in FCC/IC region only.}

1820€

Mechanical

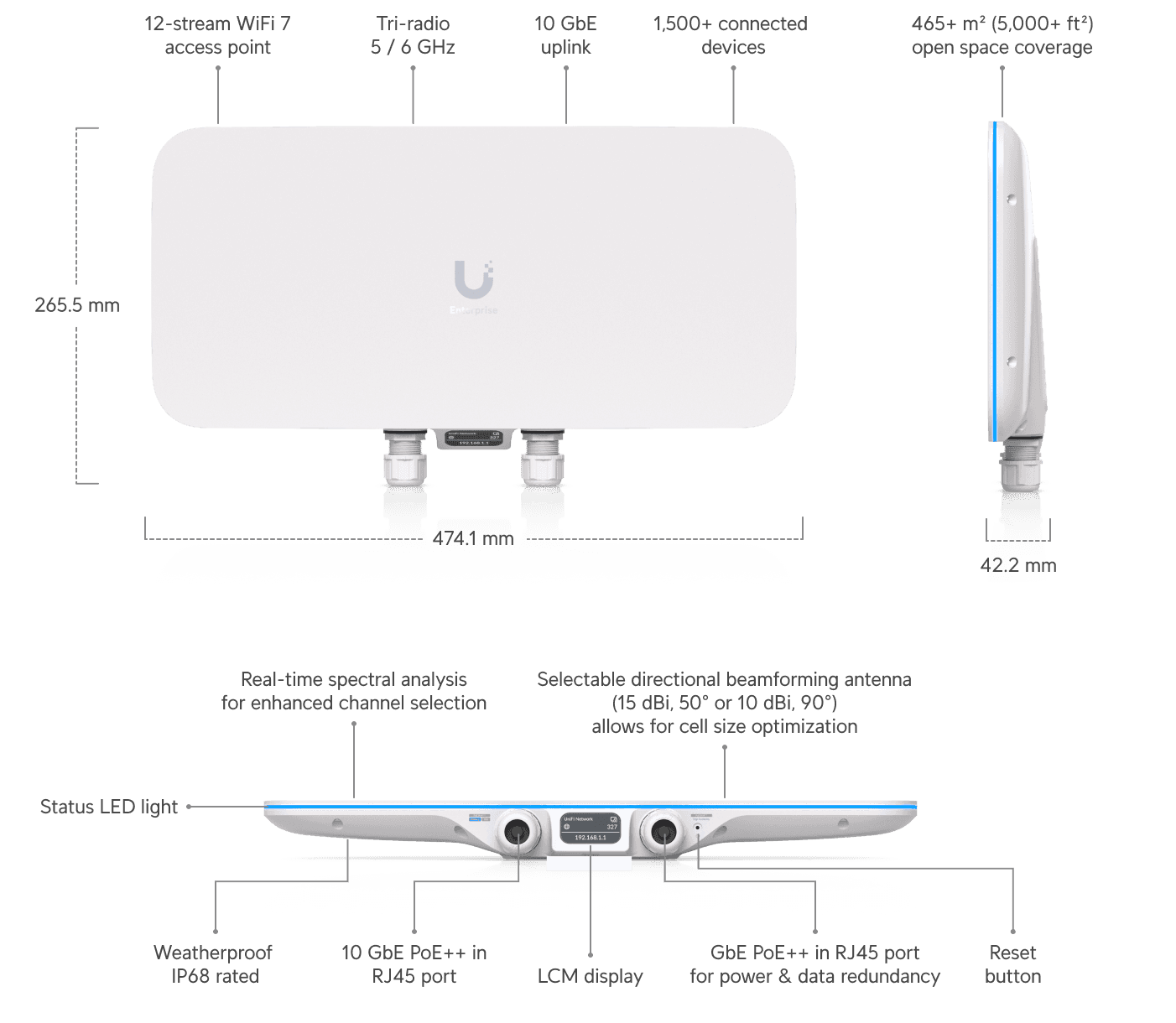

Dimensions	Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")
Weight	Without mount: 3.3 kg (7.3 lb) With mount: 4.3 kg (9.5 lb)
Enclosure material	Aluminum alloy, UV-stabilized polycarbonate
Mount material	Aluminum alloy
Weatherproofing	IP68
Wind survivability	164.75 N at 200 km/h (37 lbf at 125 mph)
Pole mount diameter	1~3" (25~76 mm) on pipe outer diameter
Hardware
Networking interface	(1) 10 GbE RJ45 port (1) GbE RJ45 port
Management interface	Ethernet
Power method	PoE++
Max. power consumption	51W
Supported voltage range	42.5—57V DC
Max. TX power 2.4 GHz 5 GHz 6 GHz	– 30 dBm Low / High band: 30 dBm (36 dBm EIRP)* *With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO 2.4 GHz 5 GHz 6 GHz	– 4 x 4 (DL/UL MU-MIMO) Low / High band: 4 x 4 (DL/UL MU-MIMO)
Max. data rate 2.4 GHz 5 GHz 6 GHz	– 8.6 Gbps (BW240) Low / High band: 11.5 Gbps (BW320)
Antenna gain 2.4 GHz 5 GHz 6 GHz	– Small cell: 15 dBi / Large cell: 11 dBi Small cell: 15 dBi / Large cell: 11 dBi
Antenna beamwidth Small cell Large cell	50° 90°
Antenna	Internal with directional patterns
LEDs	R/G/B
Button	Factory reset

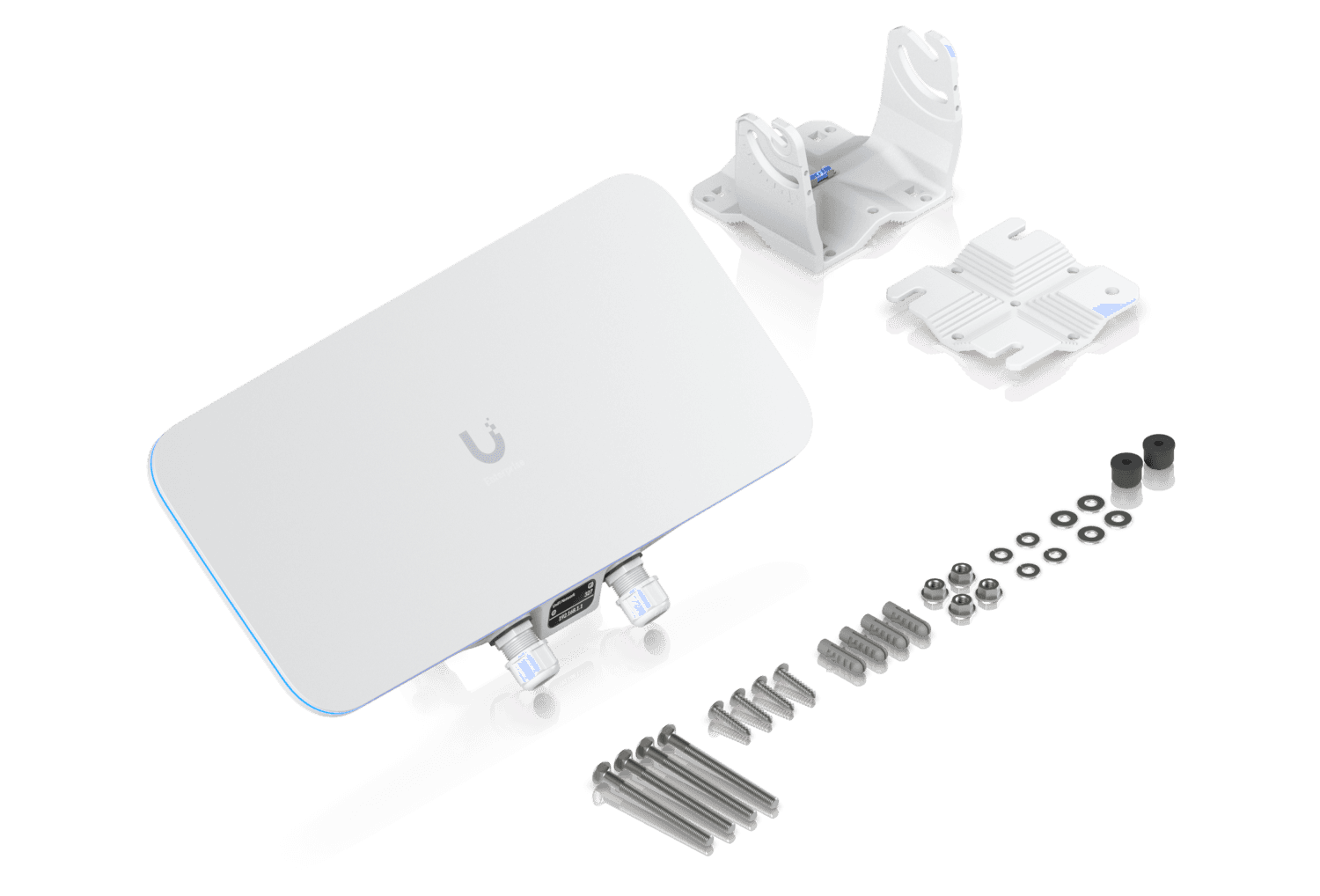

Mounting	VESA-compatible mount, pole/wall (Brackets included)
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC
Software
WiFi standards	802.11 a/b/g/n/ac/ax/be
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	1,500+
Ubiquiti specific features	High selectivity PRISM™ RF filtering technology Dedicated spectral analyzer radio
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be	7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
