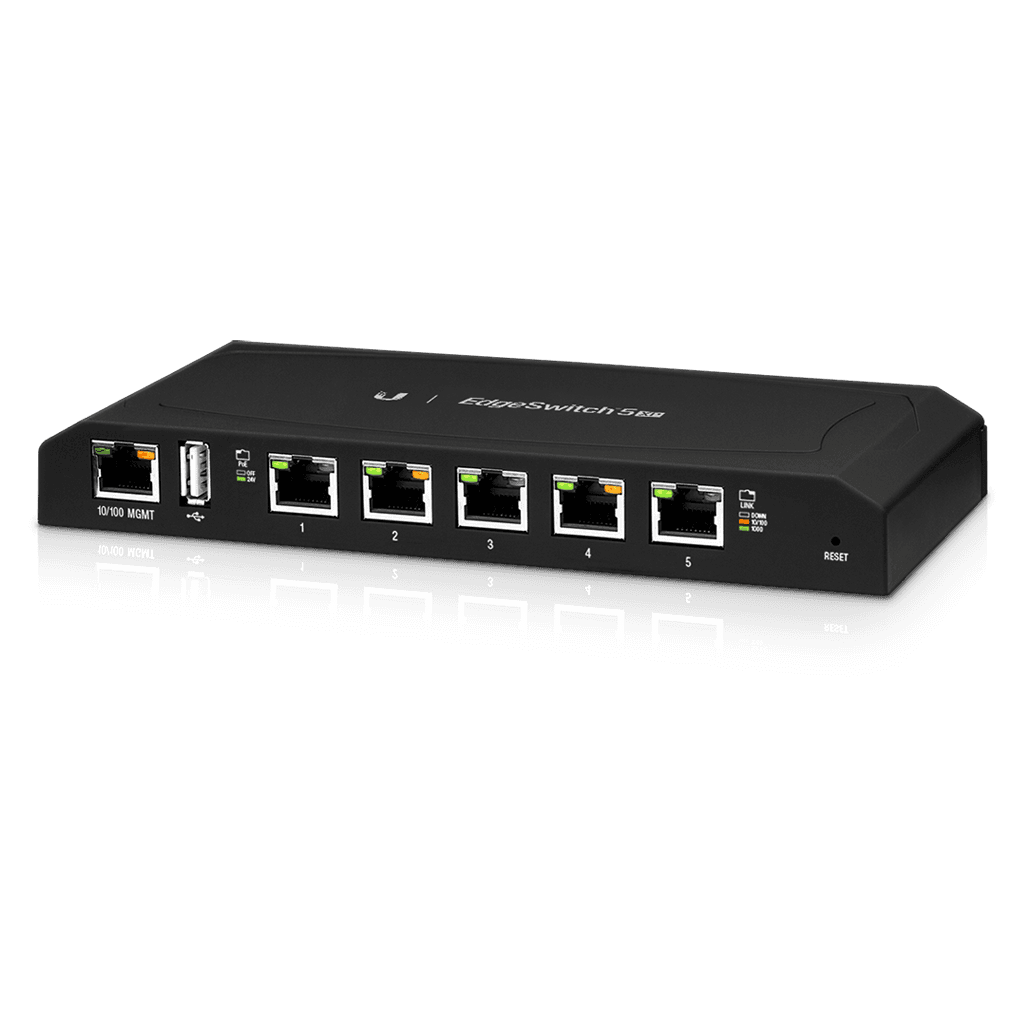

EdgeSwitch 5XP
ES-5XP
85,00 €*
Compact but powerful switch with (5) Gigabit PoE ports and an intuitive EdgeSwitch XP interface.
(5) GbE RJ45 ports
24V passive PoE passthrough
Wall-mountable
85€
| Mechanical | |
|---|---|
| Dimensions | 197 x 87.5 x 27.3 mm (7.8 x 7.8 x 1.6") |
| Weight | 250 g (8.8 oz) |
| Hardware | |
| Processor | MIPS 24K, 400 MHz |
| System memory | 64 MB |
| Code storage | 8 MB |
| Networking interface | (5) 10/100/1000 Ethernet ports |
| Management interface | (1) 10/100 Ethernet port |
| Power method | 24V DC, 2.5A power adapter (Included) |
| Max. power consumption | 60W |
| PoE Out voltage range | 22-24V DC |
| Max. PoE wattage per port | 11.5W |
| ESD rating | Air/contact: ±24 kV |
| PoE method | Passive |
| Button | Factory reset |
| PoE configurable per port | Management port: N/A Data ports: Off/24V |
| LEDs | Management port: power/link Data ports: PoE, speed/link/activity |
| Ambient operating temperature | -25 to 55° C (-13 to 131° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
